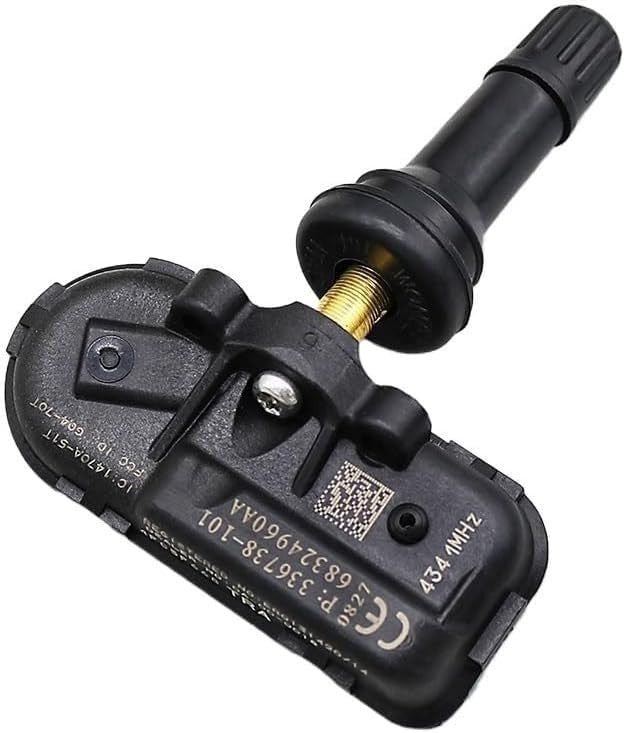

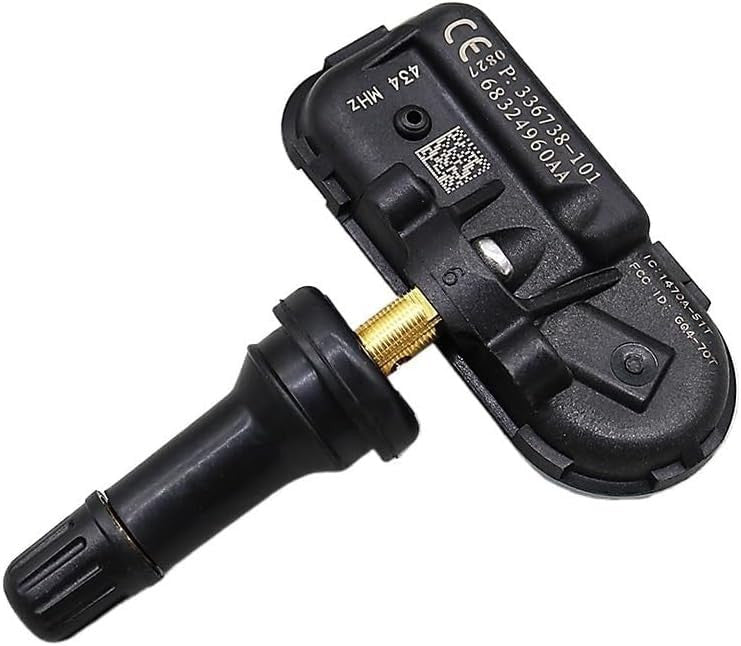

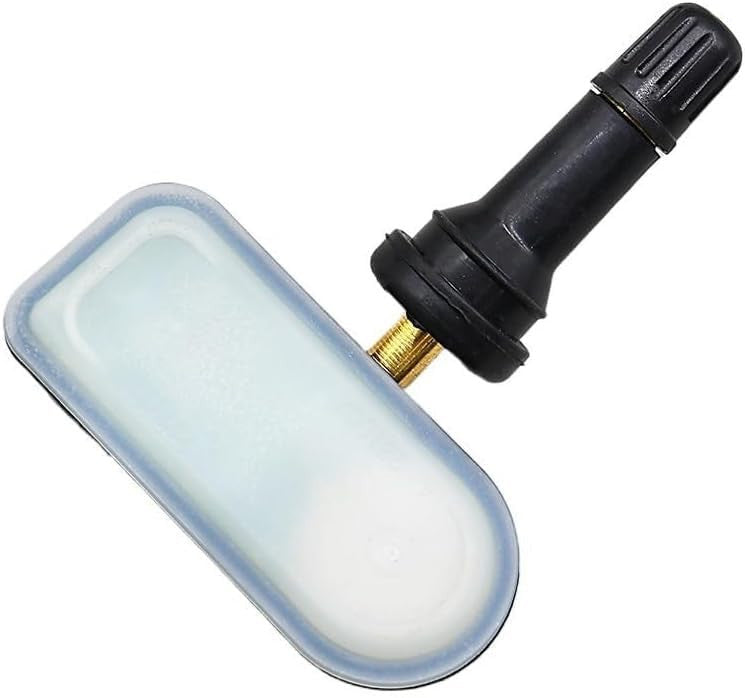

Tyre Pressure Monitoring Sensor TPMS For Jeep Cherokee Ram 1500 3500 68324960AB

The TPMS sensor is pre-programmed (already coded), meaning it comes with its specific ID code ready to go.

Reset or Relearn: After installing the sensor, perform a reset or relearn process. This process ensures the car’s ECU recognises and connects with each sensor on the correct tire.

Device Activation: A device is uséd by the fitter to activate each sensor. This lets the car’s ECU (Engine Control Unit) read the sensor data from each tire correctly.

Specification:
Type: Tire Pressure Sensor
Pre-Programmed: Yes (Plug & Play - Depending on Relearn Process)
Material: Premium Plastic
Surface Finish: Black
Device Type: Direct Replacement
Mounting Type: Snap-In
Placement on Vehicle: Left, Right, Front, Rear
Waterproof Level: IP67
Operating Frequency: 433 MHz
Operating voltage: 2.1 V-3.6 V
Operating temperature: -40°C to +125°
Battery life: 5 years
Weight gross: 40g
Packaging Includes: 1Pc TPMS

Comparative Part Numbers: 68324960AA, 68157568AA, 68157568AB, 68239720AA, 68239720AB, 68239720AC, 68378369AB, 68378369AF, 68378369AC, 68378369AD, 68378369AE, 68185570AA, 68324960AB

Fitment (Reference Only - Please Check Your Old Part Number):

Fit For: Jeep Cherokee 2014-2023 2.4L 2360CC 144Cu. In. L4 GAS SOHC Naturally Aspirated
Fit For: Jeep Cherokee 2014-2021 3.2L 3239CC 198Cu. In. V6 GAS DOHC Naturally Aspirated
Fit For: Jeep Cherokee 2018-2021 2.4L 2360CC 144Cu. In. L4 GAS SOHC Naturally Aspirated
Fit For: Jeep Cherokee 2019-2020 2.0L 1997CC 122Cu. In. L4 GAS DOHC Turbocharged
Fit For: Jeep Cherokee 2021-2023 2.0L 1997CC 122Cu. In. L4 GAS DOHC Turbocharged
Fit For: Ram 1500 2014-2017 3.6L 3604CC 220Cu. In. V6 FLEX DOHC Naturally Aspirated
Fit For: Ram 1500 2014-2017 5.7L 345Cu. In. V8 GAS OHV Naturally Aspirated
Fit For: Ram 1500 2014-2017 3.0L 2987CC 182Cu. In. V6 DIESEL DOHC Turbocharged
Fit For: Ram 1500 2017 3.6L 3604CC 220Cu. In. V6 GAS DOHC Naturally Aspirated
Fit For: Ram 2500 2014-2019 5.7L 345Cu. In. V8 GAS OHV Naturally Aspirated
Fit For: Ram 2500 2014-2018 5.7L 345Cu. In. V8 CNG OHV Naturally Aspirated
Fit For: Ram 2500 2015-2023 6.7L 408Cu. In. L6 DIESEL OHV Turbocharged
Fit For: Ram 2500 2015-2024 6.4L 6424CC 392Cu. In. V8 GAS OHV Naturally Aspirated
Fit For: Ram 2500 2016 5.7L 345Cu. In. V8 GAS Naturally Aspirated
Fit For: Ram 2500 2018-2024 6.7L 408Cu. In. L6 DIESEL OHV Turbocharged
Fit For: Ram 3500 2014-2018 5.7L 345Cu. In. V8 GAS OHV Naturally Aspirated
Fit For: Ram 3500 2014-2023 6.7L 408Cu. In. L6 DIESEL OHV Turbocharged
Fit For: Ram 3500 2014-2024 6.4L 6424CC 392Cu. In. V8 GAS OHV Naturally Aspirated
Fit For: Ram 3500 2020-2024 6.7L 408Cu. In. L6 DIESEL OHV Turbocharged
Fit For: Ram 1500 Classic 2019-2024 3.6L 3604CC 220Cu. In. V6 FLEX DOHC Naturally Aspirated
Fit For: Ram 1500 Classic 2019-2024 5.7L 345Cu. In. V8 GAS OHV Naturally Aspirated
Fit For: Ram 1500 Classic 2019 3.0L 2987CC 182Cu. In. V6 DIESEL DOHC Turbocharged
